Product Description
CN-D Laser Marking Machine
Marking and Engraving with Flexible and Computer-Aided Control

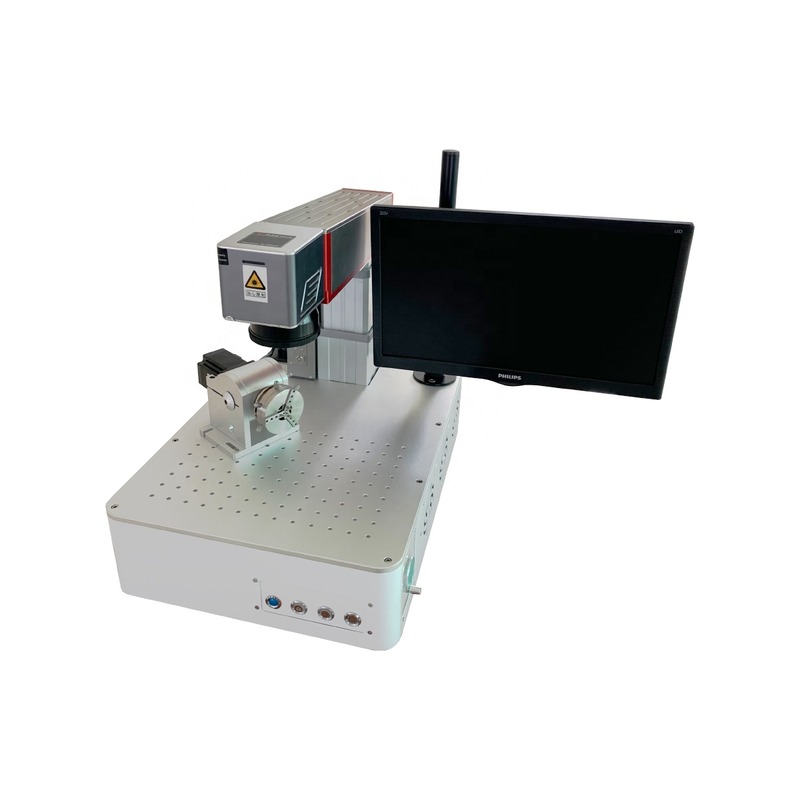

CN-D Model Desktop Fiber Laser Marking/Engraving Machine is Latest Designed for flexible laser marking.
This new type model can match multiple power Fiber Laser Source. Its light-sealed Optical block can do well in Dust-Proof and Anti-Vibration. And the Pulse Control Motorized Lifting Mechaism has more stable and precise performance. Besides, the internal devices of CN-D Marking Stystem has good ground connection and anti-interference ability.
Equipped seperately Mini PC System, which can be also OEM for system settings. For saving design space and also update the computer configuration and offer more selections to clients.
CN-D Laser Marking machine is safer and more reliable with integrated designed cabinet.
Whis is widely used in Electronic Components, Hardware, Electrical Industry, Daily Consumer Goods, Sensors, Auto Parts, 3C Electronics, Crafts, Precision Apparatuses, Gifts and Ornaments, Medical Equipments, Accessories, Battery Industry, It and other Industry, etc.
1. The Compact Desktop Design
2. Fast Speed Laser Marking and More precision.
3. Delicate Marking with superior laser beam
4. Stable output power, high reliability, 24 hours continuous operation
5. Mini PC with improving computer configuration for suiting any type of design drawing.
6. Compact Scan-Head; Low Maintenance; No more flying optics to align
7. Chuck Rotary Size Options for Cylindrical Objects (Optional Purchase)
8. With the engraver laser every kind of objects can be visualized, such as drawings, Graphics, Logos, Bar and QR Codes.
9. High quality Marking/Engraving: Previously, Highly Durable, Weather Proof and Environment-Friendly.
| Product Name | Fiber Laser Marking/Engraving Machine | Cooling System | Air Cooling |
| Model | CN-D 20w/30w/50w/100w | Marking Speed | 7000mm/s |
| Laser Source | Raycus/IPG/JPT/MAX | Mininum Line Width | 0.01mm |
| Laser Type | 1064nm | Pulse Frequence | 30k Hz-100k Hz |
| Filed Lens | Imported Brand | Operation Environment | Clean or Dust-Free |
| Marking Area | 70*70mm/110*110mm/150*150mm/etc | Power Supply | AC220V/110+10% 50Hz or 60Hz |
| Control Card | Brand EZ-CAD2 | Operation | Win 10 |
